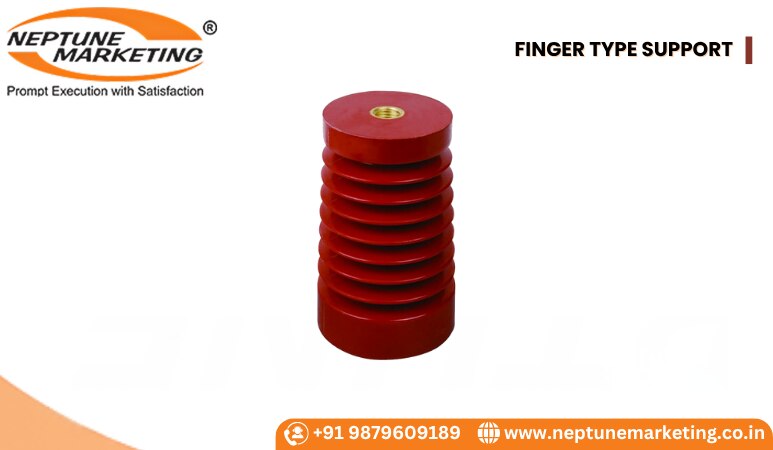

HT & LT EPOXY RESIN INSULATOR
Description
HT & LT Epoxy Resin Insulators Supplier in India.
Neptune Marketing is a leading HT & LT Epoxy Resin Insulator Manufacturer in India, delivering high-quality, durable, and safe epoxy resin insulators for diverse industrial applications. Designed to meet international standards, these insulators provide superior electrical insulation and mechanical strength for both high- and low-tension applications.
Key Features
• Unmatched Quality: Manufactured using premium materials for long-lasting performance
• Peerless Electrical Properties: Ensures optimal insulation and reduces the risk of electrical faults
• Safe Working Load: Engineered to withstand industrial demands and heavy electrical loads
• Compliance: Manufactured in line with industrial standards
HT & LT Epoxy Resin Insulators – Specifications
Medium Voltage Insulators
• MV 5035: Height 35 mm | Voltage 1.6 Kv | 4 Ribs | Creepage 48 mm | Ø D: 50 mm | Ø d: 25 mm | Inserts: M-08 x 15 Lg
• MV 7535: Height 35 mm | Voltage 1.6 Kv | 4 Ribs | Creepage 67 mm | Ø D: 75 mm | Ø d: 30 mm | Inserts: M-10 x 15 Lg
High Voltage Insulators
• MV 6040: Height 40 mm | Voltage 3.5 Kv | 1 Rib | Creepage 55 mm | Ø D: 60 mm | Ø d: 36 mm | Inserts: M-08 x 12 Lg / M-10 x 15 Lg
• MV 5050: Height 50 mm | Voltage 3.5 Kv | 4 Ribs | Creepage 65 mm | Ø D: 50 mm | Ø d: 25 mm | Inserts: M-10 x 15 Lg / M-08 x 20 Lg
Specialized Insulators
• MV 6075 / PDMV 6075: Height 75 mm | Voltage 6.8 Kv | 2 Ribs | Creepage 112 mm | Ø D: 60 mm | Ø d: 36 mm | Inserts: M-16 x 20 Lg / M-06 x 15 Lg / M-12 x 25 Lg
• MV 90150: Height 150 mm | Voltage 16 Kv | 7 Ribs | Creepage 392 mm | Ø D: 90 mm | Ø d: 36 mm | Inserts: M-16 x 30 Lg / M-20 x 35 Lg
Extra High Voltage Insulators
• MV 70210 / PDMV 70210: Height 210 mm | Voltage 22 Kv | 9 Ribs | Creepage 285 mm | Ø D: 70 mm | Ø d: 36 mm | Inserts: M-10 x 25 Lg / M-06 x 15 Lg / M-16 x 55 Lg
• MV 80300 / PDMV 80300: Height 300 mm | Voltage 35 Kv | 12 Ribs | Creepage 450 mm | Ø D: 80 mm | Ø d: 36 mm | Inserts: M-10 x 25 Lg / M-06 x 15 Lg / M-16 x 75 Lg
Why Choose Neptune Marketing?
• Trusted Expertise: Years of experience as a leading HT & LT Epoxy Resin Insulator Manufacturer in India
• Custom Solutions: Sizes and specifications can be customized to suit unique industrial needs
• Reliable Performance: Ensures safe and efficient electrical insulation for both HT and LT systems
Contact Neptune Marketing today for customized solutions and expert assistance!
