SOLAR CABLES

Solar Cables Supplier in Ahmedabad, Gujarat, India.

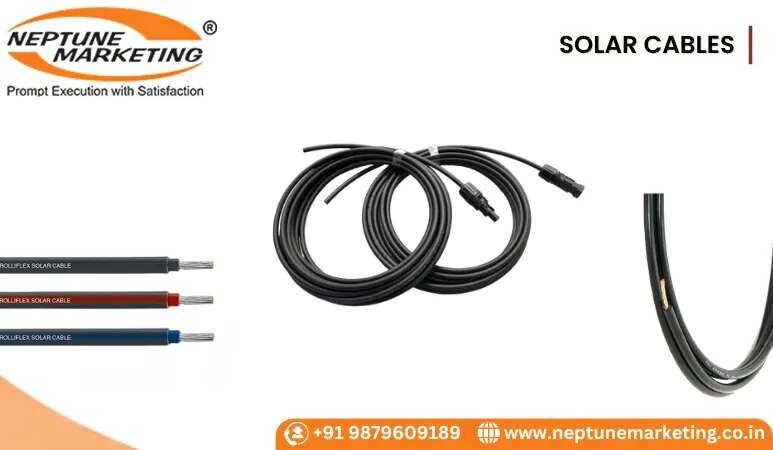

Harness the full potential of your solar energy system with Neptune Marketing, a trusted Solar Cables Supplier in Ahmedabad. Our range of photovoltaic (PV) cables is engineered to deliver consistent, reliable performance in even the toughest operating environments. Designed for flexibility, durability, and maximum conductivity, our solar cables ensure safe and efficient power transmission from your solar panels to the inverter.

1. TUV Approved PV Cables – Certified for Excellence

Our TUV Approved PV Cables (CENELEC Code: H1Z2Z2-K) meet EN 50618:2014 and TÜV 2PFG1169/08.2007 standards, ensuring unmatched reliability for solar applications.

Key Features and Construction:

• Conductor: Tin-coated copper conductor as per Class 5 of EN/IEC 60228 for superior conductivity and corrosion resistance.

• Insulation: Halogen-free, cross-linked XLPO (LSZH XL) compound that offers excellent thermal stability and safety.

• Sheath: UV-resistant, halogen-free XLPO compound in black or red, designed for outdoor durability.

• Flexibility: Ideal for both fixed and flexible installations.

Performance Benefits:

These cables are flame-retardant, moisture-resistant, and abrasion-resistant, ensuring long service life in extreme outdoor conditions. Their low-smoke and zero-halogen design enhances safety, making them ideal for modern solar power installations.

2. DC Solar Cables – HR PVC Type

The DC Solar Cables (HR PVC Type) are manufactured in accordance with IS 694/1554-1, offering superior heat and UV resistance. These cables are ideal for connecting solar panels in rooftop and ground-mounted systems.

Technical Construction:

• Conductor: Plain or tin-coated copper conductor (Class 5 as per EN/IEC 60228 / IS 8130).

• Insulation: HR (105°C) rated PVC, compliant with EN 50363-3 and UL 1581 standards.

• Sheath: UV-stabilised, heat-resistant ST-2 PVC in black (other colours available upon request).

• Design Options: Available in armoured and unarmoured variants for added protection based on site conditions.

Advantages:

• Designed for high current carrying capacity.

• Resistant to moisture, UV radiation, and abrasion.

• Available in multiple colours and custom configurations.

These DC solar cables provide excellent durability and safety for long-term use in both residential and industrial solar projects.

3. DC Solar Cables – XLPE-PVC Type

Our DC Solar Cables (XLPE-PVC Type) follow IS 7098-1 standards and are designed for high-temperature and heavy-duty applications. They ensure minimal power loss and long-lasting insulation stability.

Construction Details:

• Conductor: Plain or tin-coated copper conductor (Class 5 as per EN/IEC 60228 / IS 8130).

• Insulation: HR 105°C rated PVC for robust performance.

• Sheath: UV-stabilised ST-2 PVC outer layer for maximum weather resistance.

• Options: Available in armoured/unarmoured designs and a wide range of colours.

Key Features:

• High mechanical strength for tough outdoor environments.

• Excellent electrical and thermal properties.

• Designed for easy installation and long operational life.

These cables are best suited for high-voltage DC applications and large-scale solar power plants requiring consistent energy output.

Why Choose Neptune Marketing?

At Neptune Marketing, we understand the importance of quality and reliability in solar infrastructure. As a leading Solar Cables Supplier in Ahmedabad, we offer:

• Certified, high-performance solar cables.

• A wide range of sizes (1.5 mm² to 120 mm²) to suit every requirement.

• Custom colour options, armoured/unarmoured types, and bulk supply.

• Expert guidance and timely delivery for every project.

Empower your solar energy system with durable, efficient, and TUV-approved cables from Neptune Marketing — your trusted partner for premium Solar Cables in Ahmedabad.
